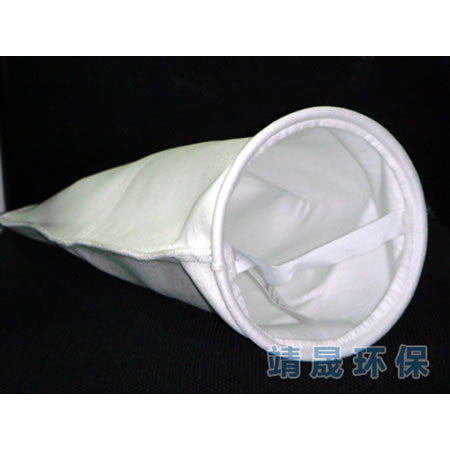

Polypropylene & Polyester Filter Bag, 1, 5, 10 and 25 micron are available with liquid filtration.

Inside the bag filtration system, the filter bag is supported by an inside metal basket. The incoming fluid flow out after filtered by the filter bag, and the impurities are intercepted in the filter bag. You can continue to use the filtration system after changing the filter bag.

Bag Filter Catalog

Our felt bags are designed to withstand higher solid loading, and are suitable for applications using bag housing or open filtration systems. With the filter bags, you can count on a quality product every time.
We makes its own fiber to produce the felt material used in our felt filter bags inhouse, guaranteeing the highest quality.

Polypropylene & Polyester filter bag in 1, 2 10 and 25 micron are available with liquid filtration.
The length of filter bags can be customized.If your filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.

Filter bags Specifications
Filter Media
Felt, nylon
Felt, polyester
Felt, polypropylene
Maximum Operating Temperature
Polypropylene: 200-220° F (93-104° C)
Polyester: 275-325° F (135-162° C)
Nylon: 275-300° F (135-149° C)
Micron Rating
Polypropylene: 0.5, 1, 3, 5, 10, 25, 50, 100, 200
Polyester: 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 200
Nylon: 25, 50, 100, 150, 200, 300, 400, 500, 600...1000
