Size 1 Single Bag Filter Housing

Size 1 Single Bag Filter Housing, Bag Filter Housings supplier, supply Bag Filter Housing for you. = more quality Bag Filter Housings product info click here.

  • Size 1 Single Bag Filter Housing
  • Material: 304SS
  • Pressure: 0.6-2.0Mpa
  • Inlet&Outlet: DN50
Inquiry

Product Introduction

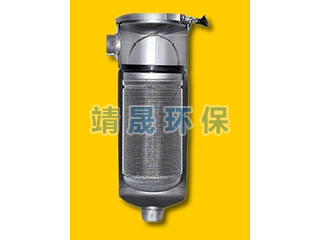

LKF01 single-bag filter housing is with a vessel which inlet & Outlet is side in and bottom out, The incoming fluid flow out after filtered by the filter bag, the impurities are intercepted in the filter bag. Filter bag is supported by an inside metal basket. You can continue to use the filter system after changing the filter bag. The small filter bag can filter large amount of liquid.
LKF01 single-bag filter housing Specification:
Model:LKF01 ---Style:Side-in Single Bag Filter Housing
Flow rate:20T/H
Filtration area:0.25 m2/h
Housing Material:304SS or 316SS
Max. Pressure:1.0Mpa
Filter Media:PP/PE Filter Bag、Nylon Filter Bag、Stainless steel Filter screen
Inlet&Outlet:2”Flange(DN50)
Optional Micron:0.5um,1um,5um,10um,25,50,75,100,125,150,200,250,300......1000um
Filtration system application:
Automotive/Paints, Coating, Inks, Dispersions/Water and Water Treatment /Solvents/Lubricants, Metalworking Fluids
Parts Cleaning Solutions/Pulp and Paper /Pharmaceutical/Food Processing/Chemical Processing/Edible Oils
Period of production:7 days after the payment.
