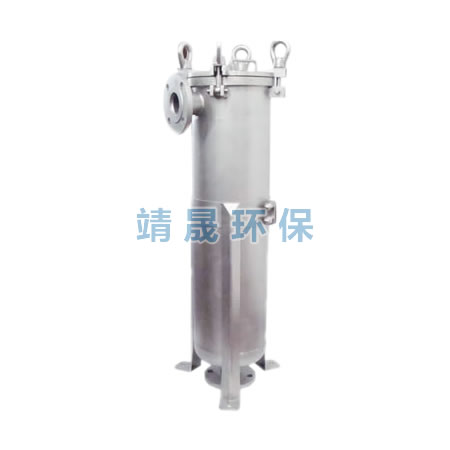

P-Style Sidein Single Bag Filter Housing,cost-effective bag filter housing.

P-Style stainless steel bag filter housing from JS ENVIRONMENT is the best choice for industrial, commercial and OEM applications. About bag filtration, inside the bag filtration system, the filter bag is supported by an inside metal basket. The incoming fluid flow out after filtered by the filter bag, and the impurities are intercepted in the filter bag. You can continue to use the filtration system after changing the filter bag.

Bag Filter Catalog

When you are looking for a cost-effective single bag filter housing that is both durable and reliable, look to the bag filter housing.

S402P Single-Bag Filter Housing Filtration Specification:
Inlet & Outlet: 2-4” Flange
Filtration area: 0.5 m2
Flow rate: 40 m3/h
Design pressure: 10 bar
Suitable working pressure : 4-6 bar
Housing material: 304SS
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.

Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine
