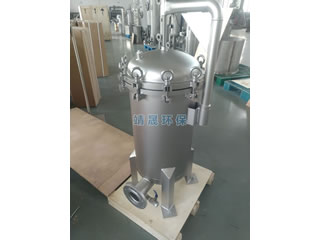

Multi bag filter housing, from 2-bag type to 24-bag type, complete in specifications.

Multi bag filter housing is designed with a proven swing eye-bolt or segment clamp closure mechanism.Positive O-ring sealing offers easy and safe operation.We can provide almost all kinds of multi-bag filters available, from double-bag type to 24-bag type, complete in specifications.Available in carbon steel or Type 304 or 316 stainless steel for high corrosion resistance.

Bag Filter Catalog

If you buy our multi-bag filters, you can wait for a long time to change the used bags..
About bag filtration, inside the bag filtration system, the filter bag is supported by an inside metal basket. The incoming fluid flow out after filtered by the bag, and the impurities are intercepted in the filter bag. You can continue to use the filtration system after changing the filter bag.

Filtration Specification:

Inlet & Outlet: 2-4” Flange
Filtration area: 1.0 m2
Flow rate: 90 m3/h
Design pressure: 10 bar
Suitable working pressure : 4-6 bar
Housing material: 304SS
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.

Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine
